Question No. 1

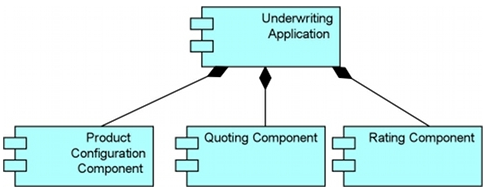

Consider the following diagram:

What does the diagram express about the structure of the Underwriting Application?

AThe Underwriting Application groups together a number of modules that are either free-standing or part of other applications

BThe Underwriting Application is composed of three application components

CThe Underwriting Application invokes three other modules

DThe Underwriting Application performs three functions

Show Answer

Correct Answer: B

Question No. 2

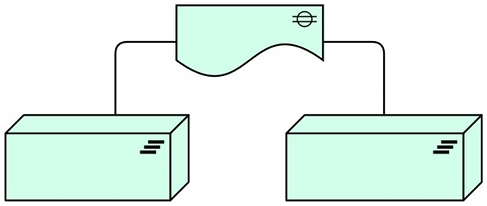

Consider the following diagram:

Which of the following best describes what this diagram represents?

ATwo plateaus with a transition architecture

BA deliverable exchanged between two projects

CA gap associated with two plateaus

DTwo nodes connected by a communication path

Show Answer

Correct Answer: C

Question No. 3

Consider the following diagram representing part of a key PRO-FIT capability: self-service online price quotes for its auto insurance customers:

Which of the following answers best interprets this diagram?

AThe Self-Service Quote Solution is an application service that uses four separate application components

BThe Self-Service Quote Solution is an application collaboration that includes four application components that work together

CThe Self-Service Quote Solution is an application component that accesses four different types of data objects

DThe Self-Service Quote Solution is an application component that collaborates with four service modules

Show Answer

Correct Answer: B

Question No. 4

Consider the following entities commonly found in a typical large organization:

1. A chief executive

2. A software application for financial management

3. A human resources department

4. Server hardware that is used to host business applications

What is the single ArchiMate aspect in the ArchiMate Framework that describes all these entities?

APassive structure

BBusiness structure

CBehavior

DActive structure

Show Answer

Correct Answer: D

Question No. 5

Billing data is a digital representation of a customer invoice.

Which ArchiMate relationship most closely represents the relationship between the billing data and the customer invoice in the diagram?

AThe Customer Invoice realizes the Billing Data

BThe Billling Data realizes the Customer Invoice

CThe Customer Invoice uses the Billing Data

DThe Customer Invoice is assigned to the Billing Data

Show Answer

Correct Answer: B

Free The Open Group OG0-021 Exam Actual Questions

The questions for OG0-021 were last updated On Jan 14, 2025
