How can the application of a rate limiting API policy be accurately reflected in the RAML definition of an API?
Correct Answe r:By refining the response definitions by adding thex-ratelimit-*response headers with description, type, and example
*****************************************
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling#response-headers
An Order API triggers a sequence of other API calls to look up details of an order's items in a back-end inventory database. The Order API calls the OrderItems process API, which calls the Inventory system API. The Inventory system API performs database operations in the back-end inventory database.
The network connection between the Inventory system API and the database is known to be unreliable and hang at unpredictable times.
Where should a two-second timeout be configured in the API processing sequence so that the Order API never waits more than two seconds for a response from the Orderltems process API?
Understanding the API Flow and Timeout Requirement:
The Order API initiates a call to the OrderItems process API, which in turn calls the Inventory system API to fetch details from the inventory database.
The requirement specifies that the Order API should not wait more than two seconds for a response from the OrderItems process API, even if there are delays further down the chain (between Inventory system API and the database).
Choosing the Appropriate Timeout Location:
Setting the timeout at the OrderItems process API level ensures that if the Inventory system API takes longer than two seconds to respond, the OrderItems process API will terminate the request and send a timeout response back to the Order API. This prevents the Order API from waiting indefinitely due to the unreliable connection to the database.
If the timeout were set in the Inventory system API or database, it would not help the Order API directly, as the OrderItems process API would still be waiting for a response.
Detailed Analysis of Each Option:
Option A (Correct Answer): Setting the timeout in the OrderItems process API allows it to control how long it waits for a response from the Inventory system API. If the Inventory system API does not respond within two seconds, the OrderItems process API can terminate the call and return a timeout response to the Order API, meeting the requirement.
Option B: Setting the timeout in the Order API would not limit the wait time at the OrderItems process API level, meaning the OrderItems process API could still wait indefinitely for the Inventory system API, leading to a longer delay.
Option C: Setting the timeout in the Inventory system API only affects the connection to the database and does not influence how long the OrderItems process API waits for the Inventory system API's response.
Option D: Setting a timeout in the database is not feasible in this context since database timeouts are typically configured for database operations and would not directly control the API response times in the overall API chain.
Conclusion:
Option A is the best choice, as it ensures that the OrderItems process API does not hold the Order API longer than the required two seconds, even if the downstream connection to the database hangs. This configuration aligns with MuleSoft best practices for setting timeouts in API orchestration to manage dependencies and prevent delays across a chain of API calls.
For additional information on timeout settings, refer to MuleSoft documentation on handling timeouts and API orchestration best practices.
An API with multiple API implementations (Mule applications) is deployed to both CloudHub and customer-hosted Mule runtimes. All the deployments are managed by
the MuleSoft-hosted control plane. An alert needs to be triggered whenever an API implementation stops responding to API requests, even if no API clients have called the API implementation for some time.
What is the most effective out-of-the-box solution to create these alerts to monitor the API implementations?
In scenarios where multiple API implementations are deployed across different environments (CloudHub and customer-hosted runtimes), Anypoint Functional Monitoring is the most effective tool to monitor API availability and trigger alerts when an API implementation becomes unresponsive. Here's how it works:
Using Anypoint Functional Monitoring:
Functional Monitoring allows you to create monitors that periodically invoke specific endpoints on the API implementations, simulating a client request. This helps ensure that the API is responsive, even if no actual client requests are being made.
If an API implementation does not respond as expected, Functional Monitoring can generate alerts, notifying administrators of potential issues.
Why Option A is Correct:
By setting up Functional Monitoring to automatically invoke the API endpoints at regular intervals, you ensure continuous monitoring and alerting capabilities, which are especially useful for APIs that may experience periods of low or no traffic. This approach provides a proactive solution, allowing you to identify and address issues before actual users are impacted.
of Incorrect Options:
Option B suggests modifying client applications to trigger alerts, which is not a best practice as it shifts monitoring responsibility to clients, reducing control and consistency.
Option C involves handling exceptions within client applications, which does not address situations where no clients are making requests.
Option D proposes a Worker Not Responding alert in Runtime Manager, which is limited to worker-specific alerts and may not reliably monitor the API's actual responsiveness to requests.
Reference For further information, refer to MuleSoft documentation on Anypoint Functional Monitoring setup and usage for API availability monitoring.
What is typically NOT a function of the APIs created within the framework called API-led connectivity?
Correct Answe r: They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
*****************************************

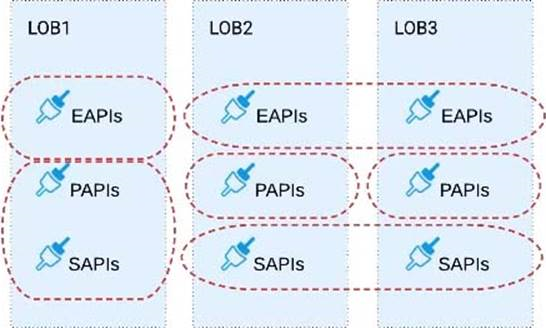

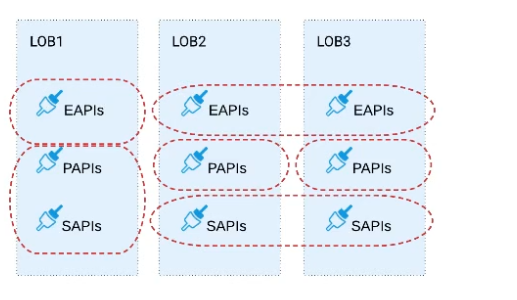

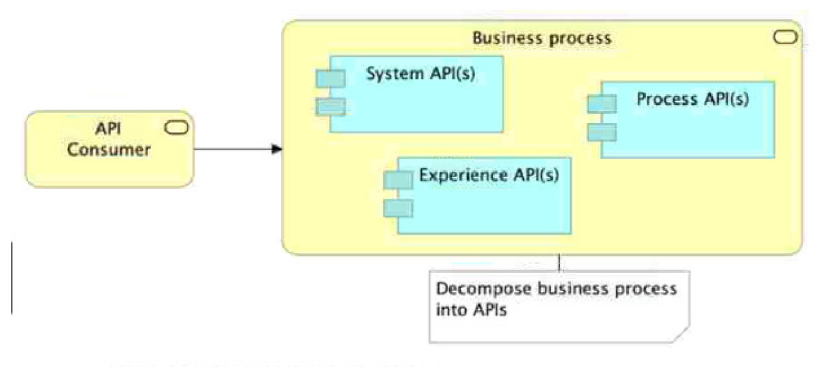

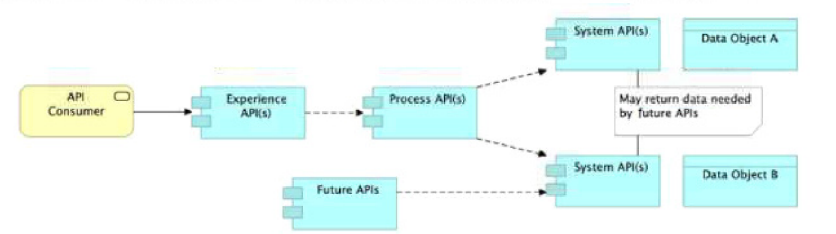

In API-led connectivity,
>> Experience APIs - allow for innovation at the user interface level by consuming the underlying assets without being aware of how data is being extracted from backend systems.
>> Process APIs - compose data from various sources and combine them with orchestration logic to create higher level value
>> System APIs - reduce the dependency on the underlying backend systems by helping unlock data from backend systems in a reusable and consumable way.
However, they NEVER promise that they provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
https://dzone.com/articles/api-led-connectivity-with-mule
An auto manufacturer has a mature CI/CD practice and wants to automate packaging and deployment of any Mule applications to various deployment targets, including CloudHub workers/replicas, customer-hosted Mule runtimes, and Anypoint Runtime Fabric.
Which MuleSoft-provided tool or component facilitates automating the packaging and deployment of Mule applications to various deployment targets as part of the company's
CI/CD practice?
For organizations with established CI/CD practices, the Mule Maven plugin is the recommended tool for automating packaging and deployment across multiple environments, including CloudHub, on-premise Mule runtimes, and Anypoint Runtime Fabric. Here's why:
Automation with Maven:
The Mule Maven plugin allows for CI/CD integration by supporting automated build and deployment processes. It is commonly used in CI/CD pipelines to handle application packaging and deployment directly through Maven commands, making it ideal for teams that want consistent deployment automation across different MuleSoft environments.
Supported Deployment Targets:
The Mule Maven plugin supports deployment to various targets, including CloudHub, Runtime Fabric, and on-premises servers, thus meeting the needs of environments with diverse deployment destinations.
Why Option B is Correct:
The Mule Maven plugin is specifically designed for CI/CD pipelines and integrates with Jenkins, GitLab, and other CI/CD tools to facilitate continuous deployment. It is the most efficient MuleSoft-provided tool for this purpose.
of Incorrect Options:
Option A (Anypoint Runtime Manager) provides deployment management but does not automate CI/CD processes.
Option C (Anypoint Platform CLI) can script deployments but lacks direct integration with CI/CD tools.
Option D (Anypoint Platform REST APIs) requires custom scripting for deployment, which can be more complex than using the Mule Maven plugin.
Reference For more details, refer to MuleSoft documentation on using the Mule Maven plugin for CI/CD.
