Question No. 1

Click the exhibit.

Referring to the exhibit, traffic handled by the s-1 scheduler is out of profile.

Assuming bandwidth is available in this scenario, which statement is correct?

ATraffic handled by the s-1 scheduler is serviced immediately after traffic being serviced by the s-4 scheduler.

BTraffic handled by the s-1 scheduler is serviced immediately before traffic being serviced by the s-4 scheduler.

CTraffic handled by the s-1 scheduler is serviced immediately before traffic being serviced by the s-2 scheduler.

DTraffic handled by the s-1 scheduler is serviced immediately after traffic being serviced by the s-2 scheduler.

Show Answer

Correct Answer: D

Question No. 2

Click the Exhibit.

Referring to the exhibit, you have EBGP peerings with both ISP1 and ISP2. You are receiving the 172.25.12.0/24, 172.25.13.0/24, 172.25.14.0/24, and 172.25.15.0/24 routes through both neighbors. You must ensure that traffic to these prefixes are load balances through both service providers. You have configured a load-balancing policy and have applied it to the forwarding table, but the prefixes are not being load balanced.

What is required to accomplish this task?

AThe multihop feature should be enabled between both neighbors.

BThe multipath multiple-as feature should be used between both neighbors.

CThe as-override feature should be used between both neighbors.

DThe include-mp-next-hop feature should be used between both neighbors.

Show Answer

Correct Answer: B

Question No. 3

Click the Exhibit.

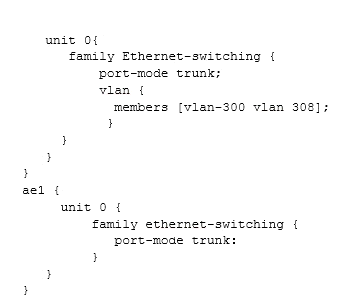

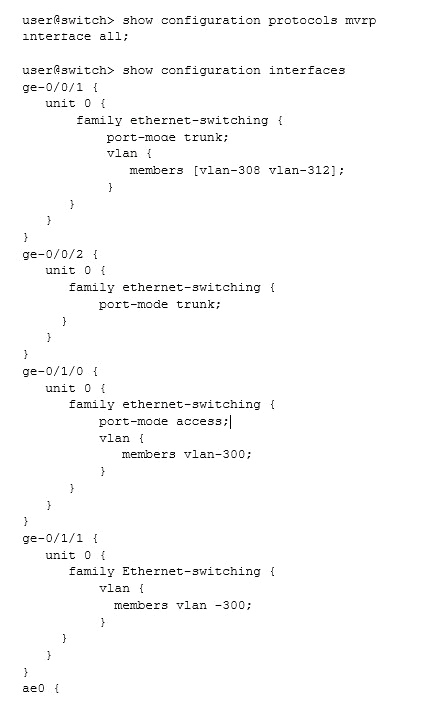

Referring to the exhibit, which set of interfaces will be registered by MVRP?

Age-0/1/0, ge-0/1/1, ae0, ae1

Bge-0/1/0, ge-0/0/2, ae0, ae1

Cge-0/0/1, ge-0/1/1, ae0, ae1

Dge-0/0/1, ge-0/0/2, ae0, ae1

Show Answer

Correct Answer: D

Question No. 4

Which router ID is correct for OSFPv3?

A0.0.0.0

B2001:123:6::1

C::172.16.1.1

D172.16.1.1

Show Answer

Correct Answer: D

Question No. 5

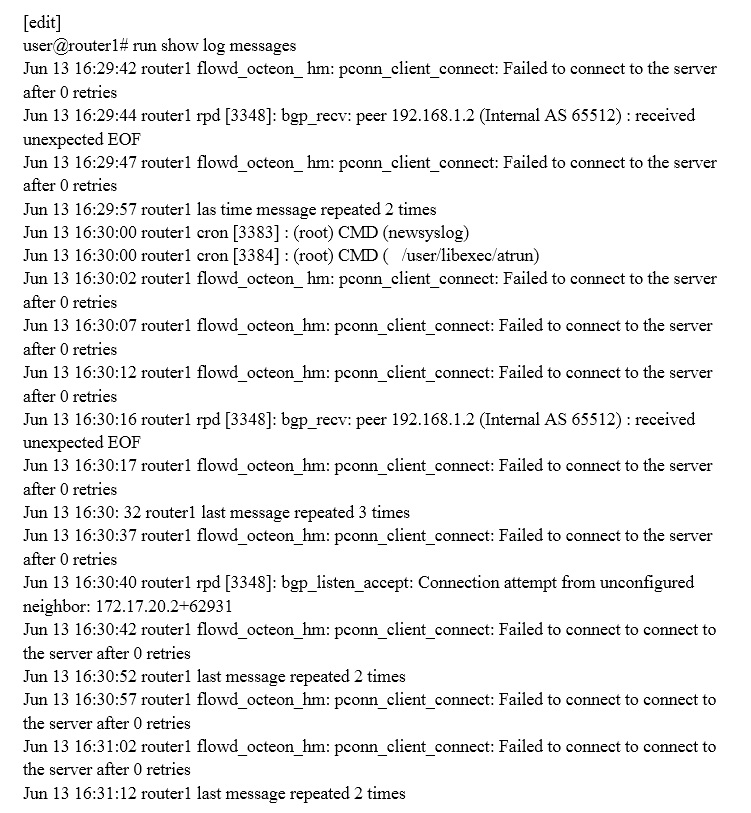

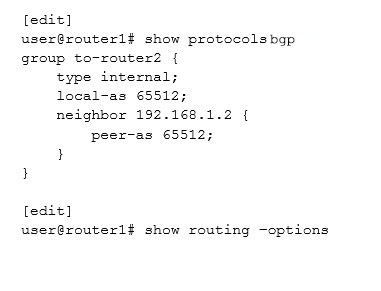

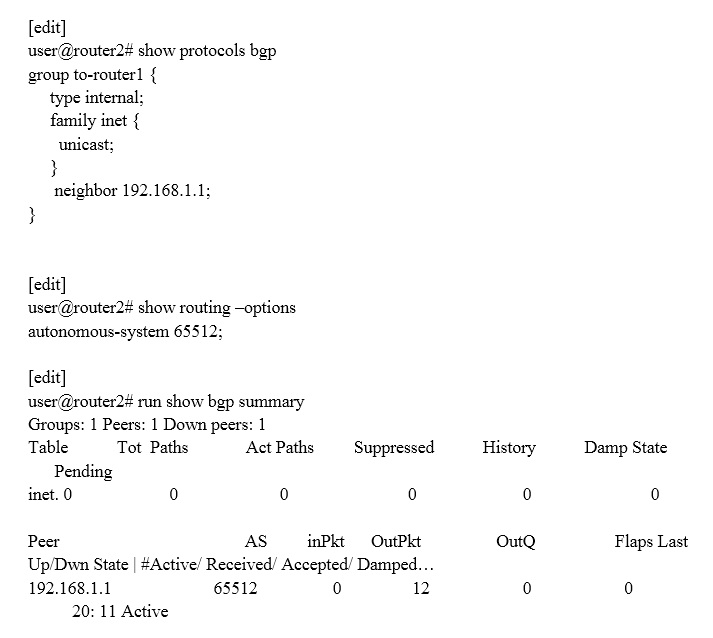

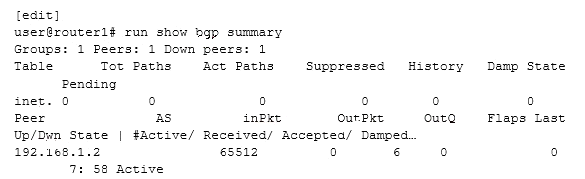

Click the Exhibit.

You are configuring a new BGP session between router1 and router2. The session does not establish.

Referring to the exhibit, what must be done to establish this session?

AYou must define the peer-as number on router2.

BYou must define the autonomous- system number under the [edit routing-options] hierarchy on router1.

CYou must specify type as external on both devices.

DYou must specify the local-address on both devices.

Show Answer

Correct Answer: D

Free Juniper JN0-647 Exam Actual Questions

The questions for JN0-647 were last updated On Jan 14, 2025
