Which items must you configure on FortiAnalyzer to send its reports to an external server?
To send reports from FortiAnalyzer to an external server, you must configure the output profile. This involves specifying the method (FTP, SFTP, or SCP), server IP, username, password, and the directory where the report will be saved. Additionally, you have the option to delete the report after it has been uploaded to the server. Reference: FortiAnalyzer 7.2 Administrator Guide, 'Enable uploading of generated reports to a server' section.
Refer to the exhibit.
Based on the partial outputs displayed in the exhibit, which devices are ready to be configured as peers in an HA cluster?
Based on the provided exhibit, which shows partial outputs of the system status and global settings for FortiAnalyzer devices, the devices cannot be configured as peers in an HA (High Availability) cluster. This is indicated by the HA Mode status being set to 'Stand Alone' for the displayed FortiAnalyzer device. For devices to be part of an HA cluster, they would need to have compatible HA configurations, and usually, they should not be in 'Stand Alone' mode. Additionally, the exhibit only shows information for one FortiAnalyzer, so it cannot be determined if there is another device ready to form an HA cluster with it.
Which two statements are true regarding FortiAnalyzer system backups? (Choose two.)
FortiAnalyzer allows for the inclusion of existing reports in the backup files, providing a comprehensive backup of configurations and data. Additionally, the backup files can be configured to be uploaded to SCP and SFTP servers, ensuring secure transfer and offsite storage of backup data. This can be configured both in the GUI and the CLI, providing flexibility in how backups are scheduled and managed. Reference: FortiAnalyzer 7.4.1 Administration Guide, 'Scheduling automatic backups' section.
Which statement is true about using aggregation mode on FortiAnalyzer?
In aggregation mode, FortiAnalyzer stores logs received from devices and forwards them at a specified time each day to avoid duplication. It is specifically designed to work between two FortiAnalyzer units and does not support syslog or CEF servers. Additionally, aggregation mode configurations are limited to CLI commands log-forward and log-forward-service. Reference: FortiAnalyzer 7.2 Administrator Guide, 'Aggregation' and 'CLI Commands for Aggregation Mode' sections.

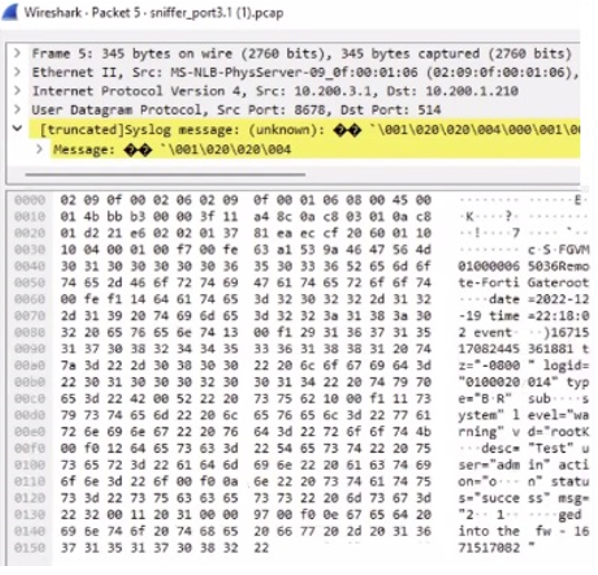

Refer to the exhibit.
Which image corresponds to the packet capture shown in the exhibit?

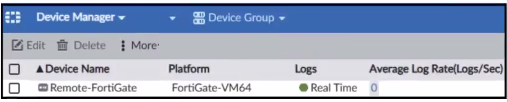

A)

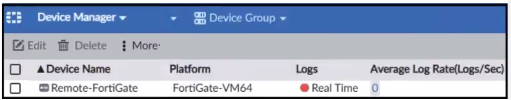

B)
C)
The exhibit shows a packet capture with a syslog message containing a log event from a FortiGate device. This log event includes several details such as the date, time, and event message. The corresponding image that matches this packet capture would be the one which shows that the FortiGate device has logs being received in real-time, as indicated by the highlighted section in the packet capture where it mentions 'real-time'. Therefore, Option A is the correct answer because it shows logs with 'Real Time' status for the FortiGate-VM64 device, indicating that this FortiAnalyzer is currently receiving real-time logs from the device, matching the activity in the packet capture. Reference: Based on the provided exhibits and the real-time logging information, correlated with the knowledge from the FortiAnalyzer 7.2 Administrator documentation regarding log reception and device management.
