XtremIO implements Data at Rest Encryption (DARE) to secure data on its SSDs.

This encryption method is designed to prevent unauthorized access to data if the physical media is stolen or lost.

The encryption process involves using a Data Encryption Key (DEK) for each drive, ensuring that data cannot be read without proper authentication.

This feature is crucial for maintaining data integrity and security, especially in scenarios involving sensitive or critical information.

Dell XtremIO Security Guide

Data Encryption at Rest Technical Overview

The design concept of the XtremIO X2-S X-Brick configuration is to provide high logical capacity.

This allows for efficient storage management and data reduction technologies, enabling organizations to maximize their storage resources.

The high logical capacity supports extensive data consolidation and improved storage utilization.

Dell XtremIO X2-S Configuration Guide

XtremIO Product Documentation

Offloaded Data Transfer (ODX) is a feature in Windows that enables efficient data transfer within or between compatible storage arrays, minimizing the host resources used during these operations. When a Microsoft Windows host is connected to an XtremIO array, leveraging ODX can significantly reduce the host's CPU and network resource utilization during Volume Shadow Copy Service (VSS) operations1.

ODX Functionality: ODX offloads the data transfer workload from the host to the storage array itself. This means that data can be moved or copied within the array without passing through the host, thus not consuming host bandwidth or processing power1.

VSS Operations: During VSS operations, which create snapshots or backups of data, there can be a significant amount of data movement. Utilizing ODX allows these operations to be handled more efficiently by the storage array, freeing up the host to perform other tasks1.

XtremIO Compatibility: XtremIO supports ODX, which allows it to handle data movement operations internally. This is particularly beneficial in environments where frequent snapshots or backups are taken, as it ensures minimal impact on host performance1.

Other Options: While MPIO (OA) is used for path redundancy and load balancing, VAAI (OB) offloads certain storage operations to the array, and VSI (OC) is a set of VMware integration tools, none of these specifically address the reduction of host resource utilization during VSS operations as effectively as ODX1.

Each X-Brick in an XtremIO environment requires at least one RecoverPoint Appliance (RPA) to manage replication tasks effectively.

RecoverPoint provides both synchronous and asynchronous replication, ensuring data integrity and disaster recovery capabilities.

The RPA is crucial for handling replication operations and maintaining data consistency across XtremIO clusters.

Dell XtremIO Integration with RecoverPoint Documentation

Raid-Zero XtremIO and RecoverPoint Initial Findings

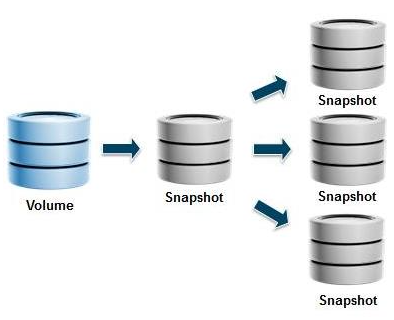

XtremIO uses a Copy-On-Write (COFW) mechanism for snapshots. When a write is performed on a snapshot, the system checks if the data block being written to has been previously written. If it has not, it copies the original data block (from the ancestor snapshot or volume) to a new location before writing the new data to ensure data consistency. This operation only happens once per block for each snapshot, thereby minimizing the performance impact.

Dell's detailed explanation of the XtremIO snapshot functionality emphasizes the efficiency of their COFW mechanism, ensuring minimal performance degradation when creating and writing to snapshots.

XtremIO documentation highlights how snapshots are managed with in-memory metadata, which supports fast creation and access without substantial performance penalties.
