Scenario: A Citrix Architect needs to design a hybrid XenApp and XenDesktop environment which will include as well as resource locations in an on-premises datacenter and Microsoft Azure.
Organizational details and requirements are as follows:
Active XenApp and XenDesktop Service subscription
No existing NetScaler deployment
Minimization of additional costs
All users should correct directly to the resource locations containing the servers which will host HDX sessions
Click the Exhibit button to view the conceptual environment architecture.
The architect should use___________ in Location A, and should use _______________ in Location B. (Choose the correct option to complete the sentence.)
Scenario: A Citrix Architect needs to design a new solution within Amazon Web Services (AWS) The architect would like to create a high availability Citrix ADC VPX pair to provide load balancing for applications hosted in the AWS deployment within a single availability zone which will receive traffic arriving from the Internet.
Which configuration should the architect choose to accomplish this?
Which NetScaler Management and Analytics System (NMAS) utility can a Citrix Architect utilize to verify the configuration template created by the NMAS StyleBook, before actually executing it on the NetScaler?

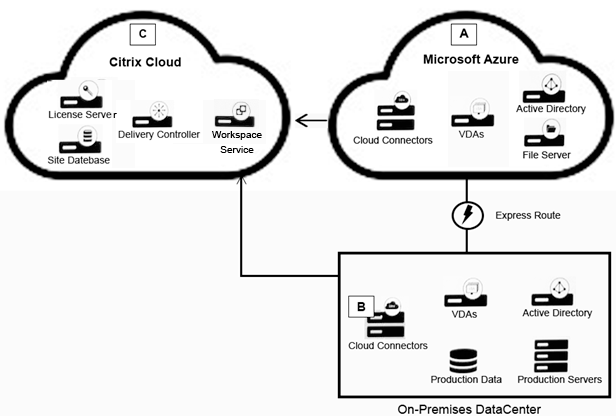

Scenario: A Citrix Architect needs to design a hybrid Citrix Virtual App and Citrix Virtual Desktop environment which will include Citrix Cloud as well as resource locations in an on-premises datacenter and Microsoft Azure.
Organizational details and requirements are as follows:
Active Citrix Virtual App and Citrix Virtual Desktops Service subscription
No existing NetScaler deployment
Global Server Load Balancing is used to direct connection requests to Location B, if the StoreFront server in Location B fails, connections should be directed to Location A.
Click the Exhibit button to view the conceptual environment architecture.
The architect should use _____ in Location A, and should use ________ in Location B. (Choose the correct option to complete the sentence.)
Scenario: A Citrix Architect has configured two MPX devices in high availability mode with version 12.0.53.13 nc. After a discussion with the security teamf the architect enabled the Application Firewall feature for additional protection. In the initial deployment phase, the following security features were enabled:
* IP address reputation
* HTML SQL injection check
* Start URL
* HTML Cross-site scripting
* Form-Field consistency
After deployment in pre-production, the team identifies the following additional security features and changes as further requirements:
* Application Firewall should retain the response of form field in its memory. When a client submits the form in the next request Application Firewall should check for inconsistency in the request before sending it to the web server.
* All the requests dropped by Application Firewall should get a pre-configured HTML error page with appropriate information.
* The Application Firewall profile should be able to handle the data from an RSS feed and an ATOM-based site. Click the Exhibit button to view an excerpt of the existing configuration.
What should the architect do to meet these requirements?
