In a cluster of Cisco Meeting Servers, one of the peer servers has the FQDN CMS1.local, and the web admin is running on 445. Which server address must be configured in the clustered Call Bridges page?
Refer to the exhibit.
guest login request 562763450: resolution in progress
guest login request 562763450: call ID lookup scheduled
guest login request 562763450: resolution in progress
guest login request 562763450: credential storage scheduled (queue length: 1)
created guest account with user ID ''quest487660227''
guest login request 562763450: credential storage executed
guest login request 562763450: credential storage in progress
guest login request 562763450: successfully stored credentials
instantiating user ''guest487660227''
conference f5771a88-0f36-4b58-8dbd-934aaa579ebf: locked due to lack of lock consensus
conference f5771a88-0f36-4b58-8dbd-934aaa579ebf: lock state has changed to locked
API ''3.0 Record Test Space'' Space GUID: 71b4f99f-2365-4730-b3d9-d2d61505150c <--> Call Correlator GUID: 334b0c10-6f85-4760-97ab-
conference f5771a88-0f36-4b58-8dbd-934aaa579ebf: lock state has changed to unlocked
starting automatic recording (space ''3.0 Record Test Space'')
API call leg 121d2c87-6940-4483-8d3d-71ff162947ba in call f5771a88-0f36-4b58b8dbd-934aaa579ebf (API call 5a0a7f49-78f8-46fd-add9-4a
conference f5771a88-0f36-4b58-8dbd-934aaa579ebf has control/media GUID: d7f2d940-c7d9-4421-8f13-7bf94756b08a
conference f5771a88-0f36-4b58-8dbd-934aaa579ebf named ''3.0 Record Test Space''
unable to start recording -- recorder URI not configured
new session created for user ''guest487660227''
call 49: allocated for guest487660227 ''Web'' conference participation
call 49: configured - API call leg 121d2c87-6940-4483-8d3d-8d3d-71ff162947ba
call 49: setting up combined RTP session for DTLS (combined media and control)
participant ''quest487660227'' joined space 71b4f99f-2365-4730-b3d9-d2d61505150c (3.0 Record Test Space)
participant ''quest487660227'' (121d2c87-6940-4483-8d3d-71ff162947ba) joined conference f5771a88-0f36-4b58-8dbd-934aaa579ebf via W
call 49: starting DTLS combined media negotiation (as initiator)
call 49: completed DTLS combined media negotiation
invalid API operation - unhandleable URI /api/v1/recorders
user ''guest487660227'': deactivating due to session resource teardown
call 49: tearing down (''guest487660227'' conference media)
call 449: destroying API call leg 121d2c87-6940-4483-8d3d-71ff162947ba
An administrator tries to implement a recording with a Cisco Meeting Server version 3.0 deployment. A separate VM is deployed and configured with the recorder service. During testing, it is discovered that the recording is failing, and the administrator collects logs.
Which configuration step should be completed?
Which type of zone should be configured on the Expressway-C to route calls to Cisco Meeting Server spaces?

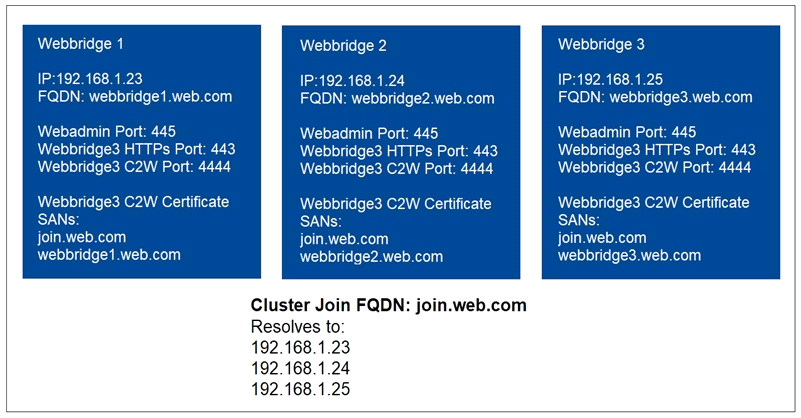

Refer to the exhibit.
An administrator wants to set up three Web Bridges in a Cisco Meeting Server cluster. After the Web Bridge API object for Web Bridge 1 is configured, this error occurs in the Cisco Meeting Server logs: ''C2W connection to 'c2w://join.web.com:443' failed (connect failure)''.
What should the administrator change to fix this issue?
An engineer must configure Cisco Meeting Server integration to Cisco UCM. Which DNS A record must be configured to accomplish this goal?
