Question No. 1

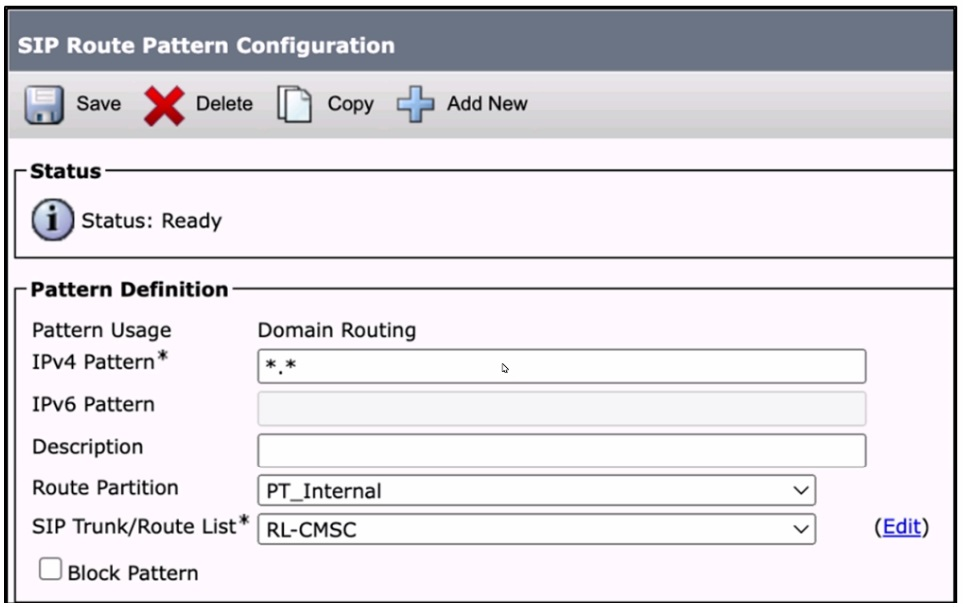

Refer to the exhibit.

A collaboration engineer investigates an issue where the user calls that match the local Jabber domain are routed back to Cisco UCM. Which action resolves this problem?

ACheck the check box to block the pattern for the local domain.

BCreate another route SIP pattern for the local domain with the block pattern selected.

CCreate a translation pattern to block calls to the local domain.

DCreate a transformation pattern to block calls to the local domain.

Show Answer

Correct Answer: B

Question No. 2

An administrator is asked to configure egress call routing by applying globalization and localization on Cisco UCM. How should this be accomplished?

ALocalize the calling and called numbers to PSTN format and globalize the calling and called numbers in the gateway.

BGlobalize the calling and called numbers to PSTN format and localize the calling number in the gateway.

CLocalize the calling and called numbers to E. 164 format and globalize the called number in the gateway.

DGlobalize the calling and called numbers to E. 164 format and localize the called number in the gateway.

Show Answer

Correct Answer: D

Question No. 3

What are two functions of the metadata in SIP recording? (Choose two.)

Aincludes the details of the application media stream

Bcontains the cryptographic context of the SRTP passthrough calls

Cidentifies the session and media association time

Dcarries the Agent Statistics Report

Ecarries the communication session data (audio and video calls) that describes the call to the recording server

Show Answer

Correct Answer: B, D

Question No. 4

The company Cisco UCM cluster has two different gateways for off-net calls. The current configuration uses 9 as a prefix to get to the main gateway. The secondary gateway is for any calls that start with 9713, but this is not yet configured. The admin does not want to add more route patterns other than the current 9 prefix for the gateway to the Cisco UCM. How must the Cisco UCM be configured to meet the requirements?

AConfigure two CSSs. then add a translation pattern with the secondary CSS to send calls with 9713 to the secondary gateway.

BConfigure two partitions and two CSSs, then add a translation pattern with the secondary CSS to send all calls with 9713 to the secondary gateway.

CCreate a Standard Route Group to dynamically route calls with prefix 9713 to the secondary gateway.

DConfigure a Route Group and a Route List to send calls with prefix 9713 to the secondary gateway.

Show Answer

Correct Answer: A

Question No. 5

Refer to the exhibit.

Which change to the translation rule is needed to strip only the leading 9 from the digit string 9123548?

Arule 1 /^9\(.*\)/A1/

Brulel /.*\(3548S\)/^1/

Crulel /^9\(\d*\)/^1/

Drule 1/^9123548/^1/

Show Answer

Correct Answer: A

Free Cisco 300-815 Exam Actual Questions

The questions for 300-815 were last updated On Dec 18, 2024
