Which two remote file system methods are used in the training material to transfer firmware to the Fabric Interconnect? (Choose two.)
What do the small form-factor, x86 64-bit blade servers reside in Cisco branch-office router?
Which three statements about powering down a Cisco UCS C-Series Rack-Mount Server to perform maintenance or replacement are true? (Choose three.)
Refer to the exhibit.
Refer to the exhibit. Which component of the UCS C240 M5 is labeled B?
In the Cisco UCS C240 M5 server, each labeled component has a specific role in the server's architecture:
1. mLOM (Modular LAN on Motherboard):
The component labeled 'B' in the exhibit corresponds to the mLOM slot. This slot is designed to provide flexible network connectivity options without occupying a standard PCIe slot. The mLOM can be used for Cisco's VIC (Virtual Interface Card) or third-party adapters, offering enhanced connectivity options for various network configurations in data center environments.
2. Explanation of the Other Options:
o PCle Riser 1 and PCle Riser 2: These are the expansion slots used for additional PCIe cards, allowing for enhanced storage, network, or GPU capabilities. These risers are typically located in other designated areas on the motherboard, not in the position marked as 'B.'
o Rear 2.5-inch Drive Bays: Located at the back of the server, these bays provide additional storage options but do not align with the area marked as 'B' in the image.
The mLOM in position 'B' provides a modular approach to network connectivity, crucial for high-performance workloads and data center flexibility. This component placement aligns with Cisco's modular design philosophy, ensuring adaptability and scalability in UCS C-Series Rack Servers like the C240 M5.

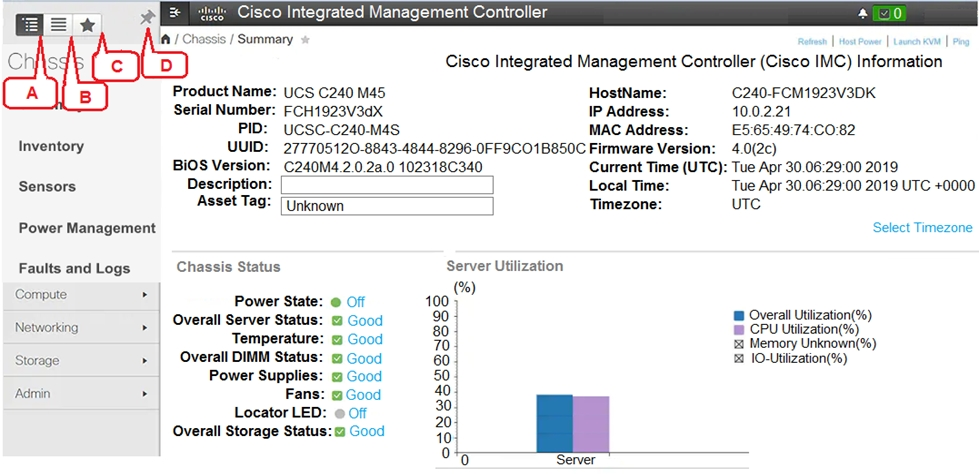

Refer to the exhibit.
Where is the best place to see the power supply status of the blade server enclosure?
